Product Home>>Product>>High-power LED Lens Series

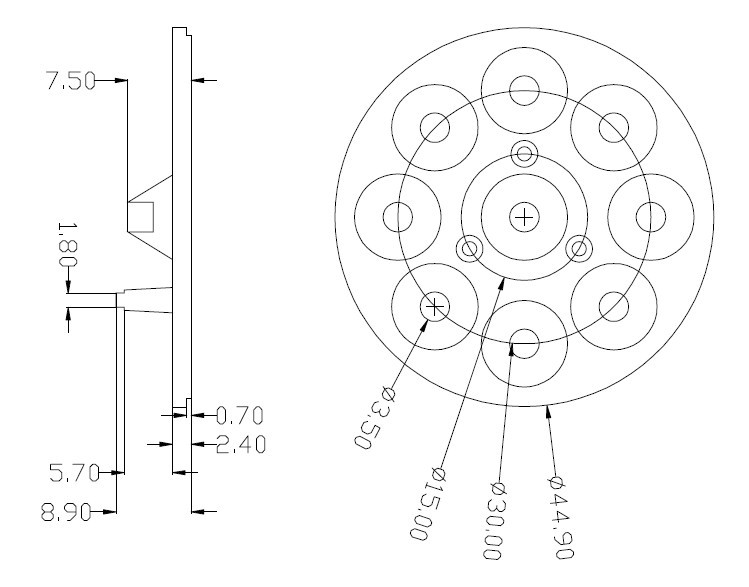

The parameters:



产品信息:(Product Information

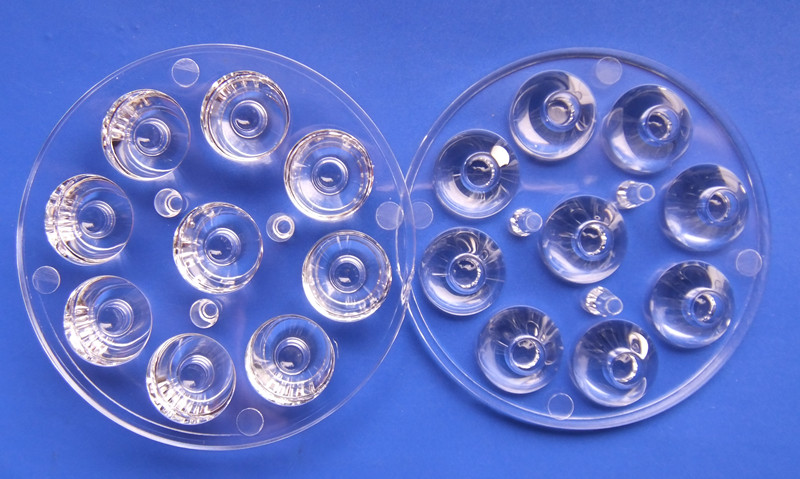

型号:( Model NOHill-44.9-40°-9TY-CREE-XPE
直径:(Dimension)  44.9mm
高度:(Height)     8.9mm
孔径:(Aperture)    3.5mm
角度:(LED lens angle)  40°
材料:光学级PMMALens material: optical grade PMMA
透光率:85%-93%   Lens transmittance: 85% to 93%
耐温:-35 +90度(Temperature: -35°to  +90°)
SGS/ROHS环保证   Certificates: SGS ,ROHS
匹配LEDCREE-XPE  流明Rebel Suitable for CREE-XPE  Luxeon-Rebel
产品应用(Product Application
适用于射灯;
This product is applicable to spot light
